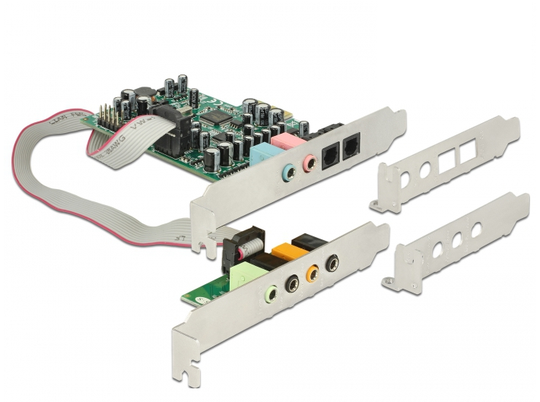

DeLOCK PCI Express Soundcard 7.1 - 24 Bit / 192 kHz with TOSLINK In / OutThis PCI Express sound card by Delock extends the system with various sound inputs and outputs and has 8 sound channels. This allows devices such as speakers, headphones etc. to be connected. When used in conjunction with a headset, the sound card is ideal for applications such as Skype or gaming. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.Specification• Connectors: external: 1 x 3.5 mm stereo jack line-In 1 x 3.5 mm stereo jack microphone input (L, R) 1 x S/PDIF TOSLINK optical digital input 1 x S/PDIF TOSLINK optical digital output 1 x 3.5 mm stereo jack front speaker (L, R) (daughter card) 1 x 3.5 mm stereo jack Surround speaker (L, R) (daughter card) 1 x 3.5 mm stereo jack center / bass speaker (daughter card) 1 x 3.5 mm stereo jack rear speaker (daughter card) internal: 2 x 10 pin connector plug for the daughter card 1 x 4 pin header for analogue CD-In port (signal: L-G-G-R) 1 x 4 pin header for analogue CD-In port (signal: G-R-G-L) 1 x 9 pin header for front panel plug 1 x PCI Express x1, V1.1• Chipset: CMedia CM8828 multi-channel audio processor CMedia CM9882A 8-Channel HDA Codec• Up to 24 Bit / 192 kHz sampling rate for recording and playback• Signal noise ratio (SNR): ca. 92 dB• Supports ASIO and WASAPI• Supports 7.1 channel soundSystem requirements• Windows 7/7-64/8.1/8.1-64/10/10-64• PC with one free PCI Express slot and one rear slotPackage content• PCI Express card• Daughter card• 2 x low profile bracket• 1 x flat ribbon cable• CD ROM with driver and software• User manual
