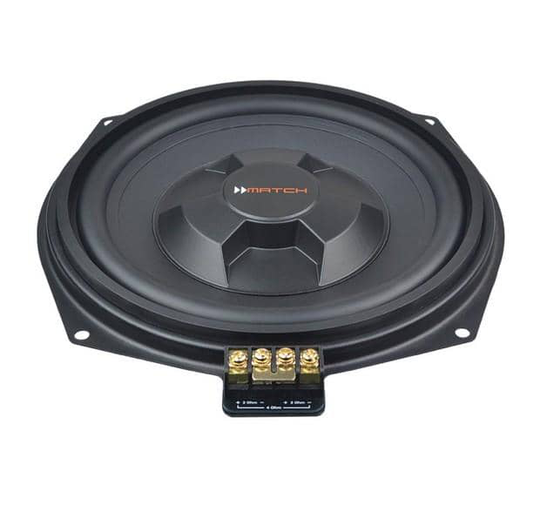

Match MW 8BMW-D

Match autokohtainen 8″ subwoofer BMW• 8″ subwooferit jotka soveltuvat alkuperäisille paikoille etupenkkien alle • Tehonkesto 200/400 watt, • Impedanssi 2x2 ohm ( mahdollistaa käytettäväksi MATCH PP62DSP ja PP86DSP neljää kanavaa, tuplasti enemmän tehoa! ) • Pakkaus sisältää BMW liittimet Tämä kaiutin soveltuu 4 ohmin impedanssin ansiosta myös BMW Top Hifi ( Harman/Kardon, Logic7, HiFi System Professional DSP ym nimet ) järjestelmiin jotka kulkevat varustekoodeilla S688A/S677A/S752A. Saat 4 ohmin impedanssin kytkemällä puhekelat sarjaan.Power RMS / max. _x0001_P _x0001_200 / 400 Watts Impedance _x0001_Z _x0001_2 x 2 Ω DC resistance _x0001_Re _x0001_3.4 Ω Resonance frequency _x0001_Fs _x0001_46 Hz Mechanical Q factor _x0001_Qms _x0001_4.45 Electrical Q factor _x0001_Qes _x0001_0.59 Total Q factor _x0001_Qts _x0001_0.52 Compliance _x0001_Cms _x0001_272 µm/N Equivalent air volume _x0001_Vas _x0001_17.3 L Force factor _x0001_B*I _x0001_8.6 Tm Efficiency 1 W / 1 m _x0001_SPL _x0001_90 dB Cone area _x0001_Sd _x0001_214 cm² Moving mass _x0001_Mms _x0001_44.2 g Cone material x0001 _x0001_Hand-scooped paper cone Mechanical resistance _x0001_Rms _x0001_0.74 kg/s Voice coil diameter _x0001_ø _x0001_42.5 mm Voice coil winding height x0001 _x0001_Handgeschöpfte Papiermembran Max. linear excursion _x0001_Xmax x0001+/- 4.0 mm Outer diameter _x0001_ø _x0001_239 mm / 9.41″ Installation diameter _x0001_ø _x0001_175 mm / 6.89″ Installation depth x0001 _x0001_40 mm / 1.57″ Recommended enclosure volumes Sealed box Net volume x0001 _x0001_3 L Lower limiting frequency (-3dB) x0001 _x0001_63 Hz DSP settings x0001 x0001- Highpass: Butterworth 12 dB/octave crossover frequency 40 Hz - Additional EQ filter: center frequency 90 Hz Q factor 3.0 gain -4 dB - Lowpass: Butterworth 24 dB/octave crossover frequency 80 - 100 Hz Vented box x0001 _x0001_For one subwoofer _x0001_For two subwoofers Net volume x0001 _x0001_12 L _x0001_24 L Port diameter _x0001_ø _x0001_60 mm / 2.36″ _x0001_80 mm / 3.15 Port area x0001 _x0001_28 cm² _x0001_50 cm² Port length x0001 _x0001_25 cm / 9.84″ _x0001_20 cm / 3.94″ Port tuning frequency _x0001_Fb _x0001_46 Hz _x0001_46 Hz Lower limiting frequency (-3dB) x0001 _x0001_45 Hz _x0001_45 Hz DSP settings x0001 x0001- Highpass: Self-Define crossover frequency 40 Hz Q factor 1.3 - Additional EQ filter: center frequency 67 Hz Q factor 3.0 gain -3 dB - Lowpass: Butterworth 24 dB/octave crossover frequency 80 - 100 Hz Compatibility: 1-series E81 3-door 2004 - 2011 Under-seat E82 Coupe 2004 - 2011 Under-seat E87 5-door 2004 - 2011 Under-seat E88 Convertible 2004 - 2011 Under-seat F20 5-door 2011 - Under-seat F21 3-door 2011 - Under-seat 2-series F22 Coupe 2011 - Under-seat F23 Convertible 2011 - Under-seat 3-series E90 Sedan 2005 - 2011 Under-seat E91 Touring 2005 - 2011 Under-seat E92 Coupe 2005 - 2011 Under-seat E93 Convertible 2005 - 2011 Under-seat F30 Sedan 2012 - Under-seat F31 Touring 2012 - Under-seat F34 Gran Turismo 2013 - Under-seat F35 Sedan Long Version 2012 - Under-seat 4-series F32 Coupe 2014 - Under-seat F33 Convertible 2014 - 5-series E60 Sedan 2003 - 2010 Under-seat E61 Touring 2003 - 2010 Under-seat F10 Sedan 2011 - Under-seat F11 Touring 2011 - Under-seat 6-series F12 Convertible 2011 - Under-seat F13 Coupe 2011 - Under-seat 7-series F01 Sedan 2008 - Under-seat X1 E84 SUV 2009 - 2012 Under-seat X3 E83 SUV 2003 - 2010 Under-seat F25 SUV 2010 - Under-seat X4 F26 SUV 2014 - Under-seat X5 E70 SUV 2006 - 2013 Under-seat X6 E71 SUV 2008 - Under-seat
